Gratings are a safe construction element provided they are fixed according to regulations. Keep hazards at bay and protect your gratings from theft by securing them against moving and, in certain cases, also against lifting. Afterwards, check installed fixings regularly to ensure they are in good condition and have a secure hold.

We also offer our fixing elements as individual parts with which you can put together a customised fixing system for different grating designs and applications. Alternatively, you will also find the most common system solutions from our range under fixing systems.

Fixing top parts

Befestigung Teller Nr. 30

Top plate
no. 30

for 30x30 mm mesh,
hot-dip galvanised

Befestigung Tiefgezogener Bügel Nr. 31

Deep-drawn
clamp no. 31

for 30x30 mm mesh,
hot-dip galvanised

Befestigung Tiefgezogener Teller Nr. 32

Deep-drawn
plate no. 32

for 30x30 mm mesh,
hot-dip galvanised

Befestigung Bügel Nr. 33a

Clamp
no. 33a

for 30x10 mm
and 40x10 mm mesh,
hot-dip galvanised

Befestigung Bügel Nr. 33b

Clamp
no. 33b

for 30x14 mm mesh,
hot-dip galvanised

Befestigung Bügel Nr. 34

Clamp
no. 34

for 30x30 mm mesh,
hot-dip galvanised

Befestigung Bügel Nr. 36

Clamp
no. 36

for 20x20 mm mesh,
hot-dip galvanised

Befestigung Bügel Nr. 37 40x40 mm

Clamp
no. 37

for 40x40 mm mesh,
hot-dip galvanised

Befestigung Bügel Nr. 38 30x20 mm

Clamp
no. 38

for 30x20 mm mesh,
hot-dip galvanised

Befestigung Einhängebügel Nr. 39

Stirrup clamp
no. 39

for ≥ 20x20 mm mesh,
hot-dip galvanised

Bolts and nuts

Befestigung Sechskantschraube Nr. 40

Hexagon head screw
no. 40

M8 according to DIN 558 Length (mm): 60, 80, 100, 120, 140, 160, 180 hot-dip galvanised / electrogalvanised

Befestigung Hakenschraube Nr. 41

Hook bolt
no. 41

M8 x 70 mm
hot-dip galvanised

Befestigung Senkkopfschraube Nr. 42

Countersunk screw
no. 42

M8 according to DIN 7991 Length (mm): 60, 80, 100 Geomet-coated

Befestigung Zylinderschraube Nr. 45

Cheese head screw
no. 45

M8 according to DIN 912 Length (mm): 60, 80, 100, galvanised

Self-drilling screw
no. 46

D=6.3 mm, length: 55 mm and 65 mm, Ruspert coated, suitable for material thicknesses 2.5-6.0 mm

Befestigung Bohrschraube Nr. 47

Self-drilling screw
no. 47

D=6.3 mm, length: 45, 60, 80 mm, Ruspert coated, suitable for material thicknesses 2.5-6.0 mm

Befestigung Bohrschraube Nr. 48

Self-drilling screw
no. 48

D=5.5 mm, length: 50 and 60 mm, Ruspert coated, suitable for material thicknesses 2.5-5.0 mm, only in combination with clamp no. 33a/b

Befestigung Nr. 60 Vierkantmutter

Square nut
no. 60

M8 according to DIN 557,
hot-dip galvanised

Befestigung Sechskantmutter Nr. 61

Hexagon nut
no. 61

M8 according to DIN 934,
hot-dip galvanised

Befestigung Selbstsichernde Sechskantmutter Nr. 62

Self-locking hexagon nut no. 62

M8 according to DIN 985
electrogalvanised

Befestigung Federring Nr. 81

Spring washer
no. 81

M8 according to DIN 127,
hot-dip galvanised

Lower fixing parts

Lower part
no. 49

for mesh
Bearing bar 40 mm
hot-dip galvanised

Lower part
no. 50

for mesh
Bearing bar 30 mm and 20 mm
hot-dip galvanised

Befestigung Unterteil Nr. 52

Lower part
no. 52

for all meshes
hot-dip galvanized

Befestigung Unterteil Nr. 53

Lower part
no. 53

for all meshes
hot-dip galvanized

Lower part
no. 55

for double clamp
hot-dip galvanized

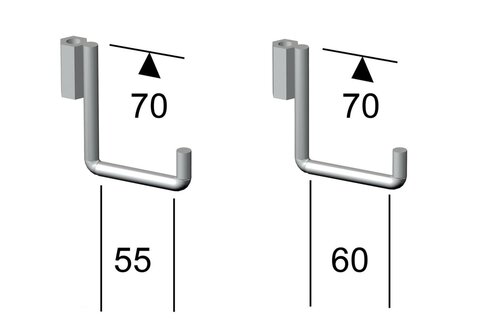

Fixing hook
no. 18 a/b

No. 18a: 70 x 60 mm
No. 18b: 70 x 55 mm
hot-dip galvanized
