VARIO MODULES –
In addition to standard gratings, standard steps and grating panels, our diverse stock range also includes standardised grating modules for use as deckings within pallet racks. At GI-RO we call them VARIO-MODULES, which we adapt to the most common load classes and rack dimensions. In addition, our force-locking Vario profile ensures high dimensional stability as well as a low installation height in the rack.
General specifications:
Bearing bar: 995 mm
Cross bar: 890 mm
Banding in cross bar direction: Vario profile
Possible applications
| Level dimensions | Modules per level |
|---|---|
| 1100 x 1800mm | 2 |
| 1100 X 2700 mm | 3 |
| 1100 x 3600 mm | 4 |

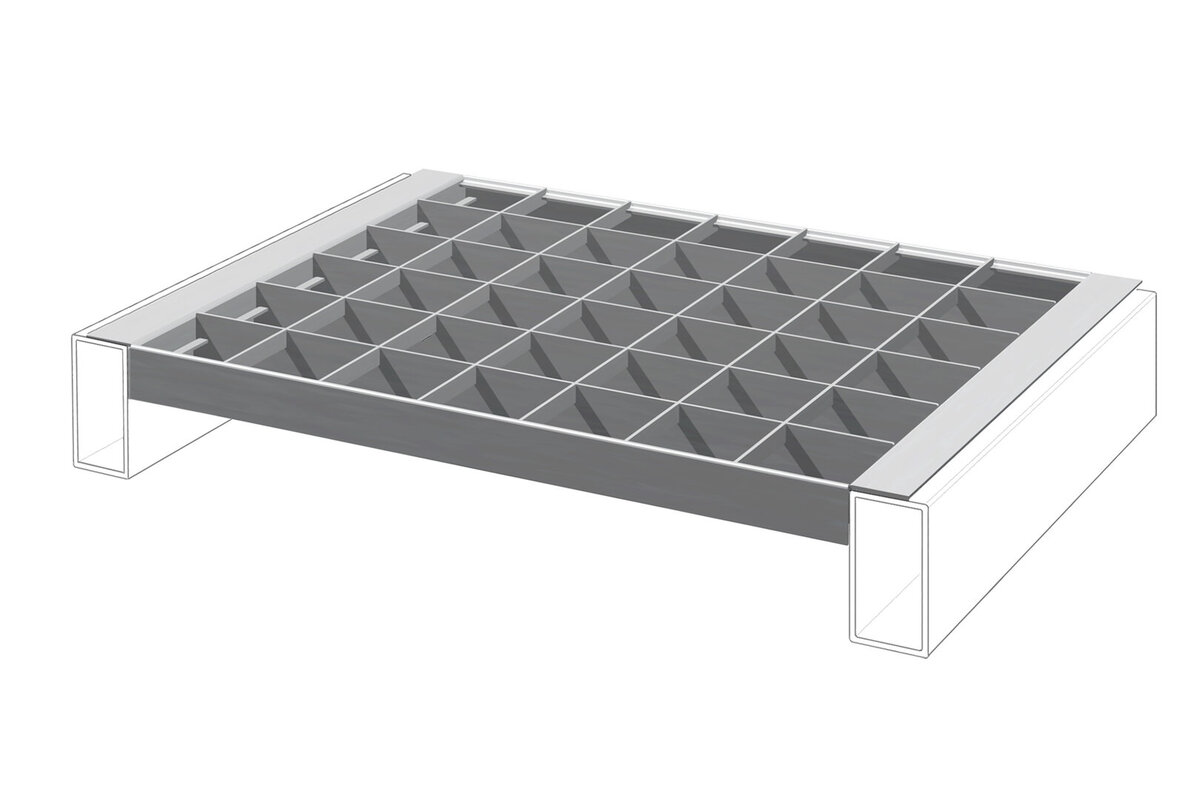

Standard version with banding in bearing bar direction
| Art. no | Uniformly distributed load | Mesh pitch | Type of bearing bar |
|---|---|---|---|
| G51-0251 | 500 kg/m2 | 88x44,44 mm | 35/1,7 mm, S355JR |
| G51-0250 | 1000 kg/m2 | 66x44,44 mm | 40/1,7 mm, S355JR |

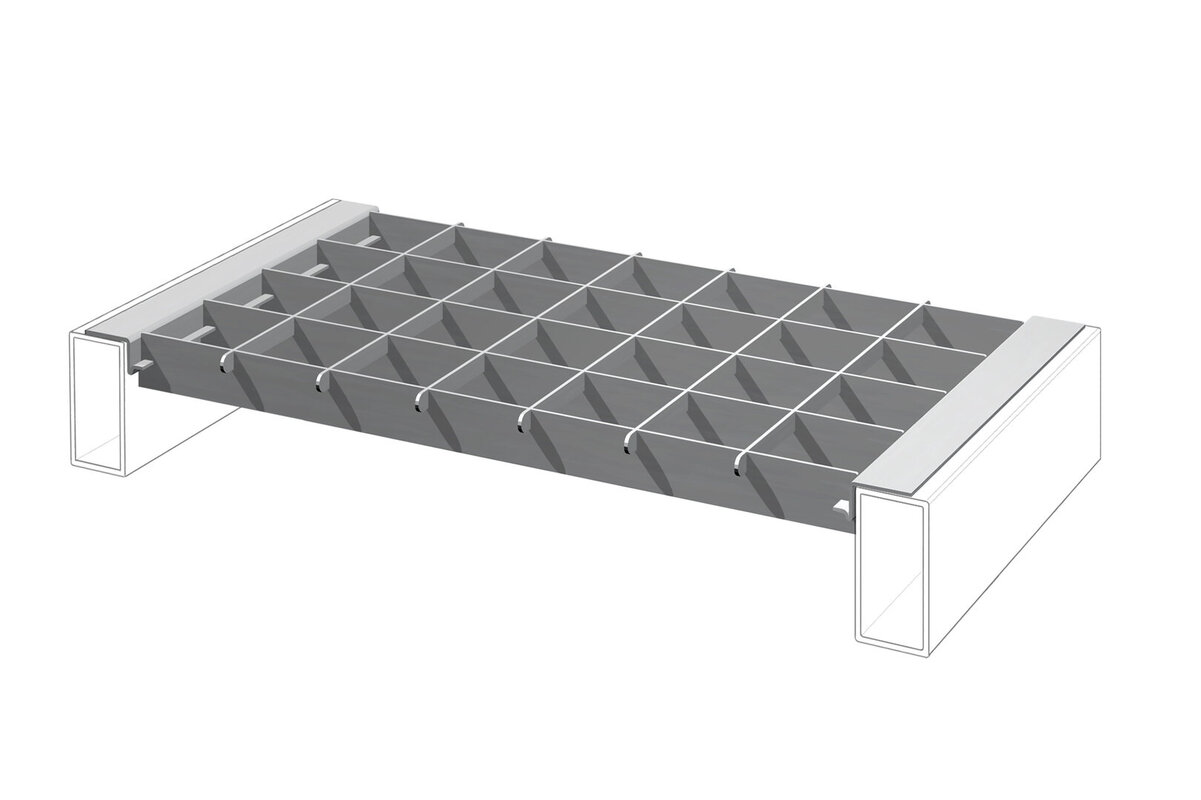

Light version without banding in bearing bar direction
This variant features rounded cross bars
(see illustration).
| Art. no | Uniformly distributed load | Mesh pitch | Type of bearing bar |
|---|---|---|---|
| G51-0277 | 350 kg/m2 | 121x55,55 mm | 35/1,7 mm, S355JR |
| G51-0275 | 1000 kg/m2 | 99x55,55 mm | 46/1,7 mm, S355JR |
VARIO MODULES are ideally suited for the most common load cases. Common load carriers such as Euro pallets, Euro mesh boxes or Euro half pallets can be stored safely on them for a long period of time. The detailed load overview shows the versatile application possibilities of our VARIO-MODULES and can help you choose a suitable grating.
Do you have a special load case that is not covered in the overview? Then please feel free to contact us. Let us help you find the optimal grating.
We are happy to help you!
You know the intended use for your gratings, but need help deciding which product is the best solution for you? Our specialist staff will be happy to advise you - even in special cases. Please don't hesitate to contact us!
