Gratings for
Would you like to expand the use of your warehouse and in future also store loose, diverse or very heavy storage goods in all lengths? That's where our GI-RO rack gratings come into play. They are simply in their element when it comes to cantilever racking: high load-bearing capacity with low dead weight, light, air and water permeability as well as corrosion protection through hot-dip galvanisation – perfect for outdoor use – are just some of their smart features. Depending on the application and project size, we can deliver the optimal type of grating for every racking. Our team will be happy to advise you, even in special cases. Please don't hesitate to contact us!
Go to the inquiry form for cantilever racking
Bearing bar and crossbar types and mesh pitches
Cleverly combined: All features mentioned can be combined to a certain extent. Would you like to know which gratings we can produce for you? Then please contact us. Our sales advisors are always available to hear you out!
| Bearing bar and crossbar types | ||
|---|---|---|
| Bearing bar thicknesses (mm) | Bearing bar heights (mm) | |
| 1,5 / 1,7 / 2,0 / 3,0 | 20-60 (in 5 mm intervals) | |
| Maximum production lengths | |
|---|---|
| Bearing bar (mm) | Crossbar (mm) |
| 3000 | 2000 |
| Mesh pitch | |
|---|---|
| Bearing bar spacing (mm) | Crossbar spacing (mm) |
| Multiples of 11.0 | Multiples of 11.11 |
| Different bearing bar and crossbar pitches available. | |
Onlaid gratings
A sustainably sturdy and force-locking system – this is what our onlaid gratings form in combination with our no. 24 fixing. Gratings are placed on the cantilever arms and fixed by means of a hole in the grating's banding. Our fixing system thus guarantees maximum long-term safety.
Onlaid gratings are suitable for use in all types and sizes of cantilever racking and can be adapted for both light and very heavy loads.

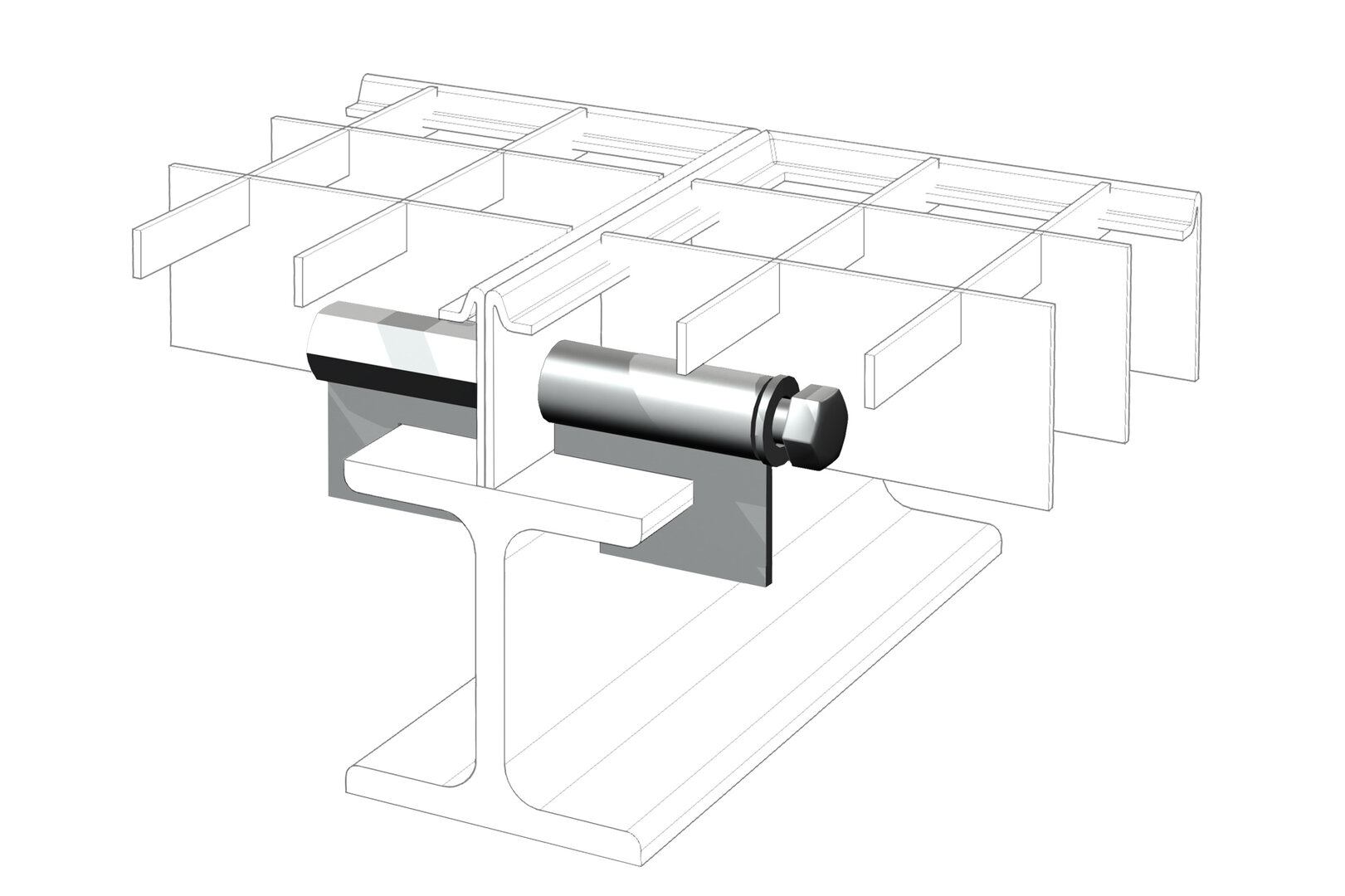

Fixing no. 24 a/b/c
Our GI-RO cantilever fixing no. 24 a/b/c ensures the permanent and force-locking connection of the grating and cantilever arm, even under dynamic forces caused by the rack’s loading and unloading operations. The plane surface also ensures optimised storage behaviour. There are three different versions for different arm and base profiles:
a) up to an 8 mm arm/base profile thickness
b) up to a 10 mm arm/base profile thickness
c) up to a 12 mm arm/base profile thickness
The screw length is adapted to the arm/base profile's width: Arm/base profile width + 20 mm
Inlaid gratings
Our special GI-RO system with inlaid gratings for cantilever racking is characterised by an integrated protection against shifting. This enables assembly without additional fixings. The low installation height of the grating is also of advantage, as it enables the utilisation of the entire storing height.
The system is suitable for larger projects with cantilever racking of the same type and light to medium loads.
We are happy to help you!
You know the intended use for your gratings, but need help deciding which product is the best solution for you? Our specialist staff will be happy to advise you - even in special cases. Please don't hesitate to contact us!
