Spiral staircases –
a safe ascent

GI-RO spiral staircases meet the highest manufacturing and safety standards. They are flexible, cost-effective and architecturally valuable, suitable for use in both the private and industrial sectors. A key feature of a spiral staircase is the unmistakable curved arrangement of steps around a supporting column.

Our spiral staircases are often used as escape and fire protection staircases, for access to work and storage platforms and as external staircases to gardens and flats.

Many advantages combined!

Very sturdy
Weather resistance
Versatile applications
Architectural value

Our range of staircases offers many options to choose from

The name of our smart staircase solutions says it all. Our VARIO staircases offer high flexibility and variability. You can select from a wide variety of heights and diameters, as well as railing and step designs.
In contrast, our ECO type staircases are perfectly suited for one-storey to two-storey staircases in the private or industrial sectors.

Go to inquiry forms spiral staircases

GI-RO VARIO spiral staircase

Flexible solutions are our strength. The VARIO type spiral staircase is an enormously flexible solution with variable construction height and diameter. Whether in the industrial or private sector, this staircase in a hot-dip galvanised design can be used in many different ways, e.g., for multi-storey buildings as escape stairs. And because safety is a fundamental element in all our products, the VARIO type spiral staircase is not only characterised by the highest quality, but also offers the option of a protective cage to prevent unauthorised entry.

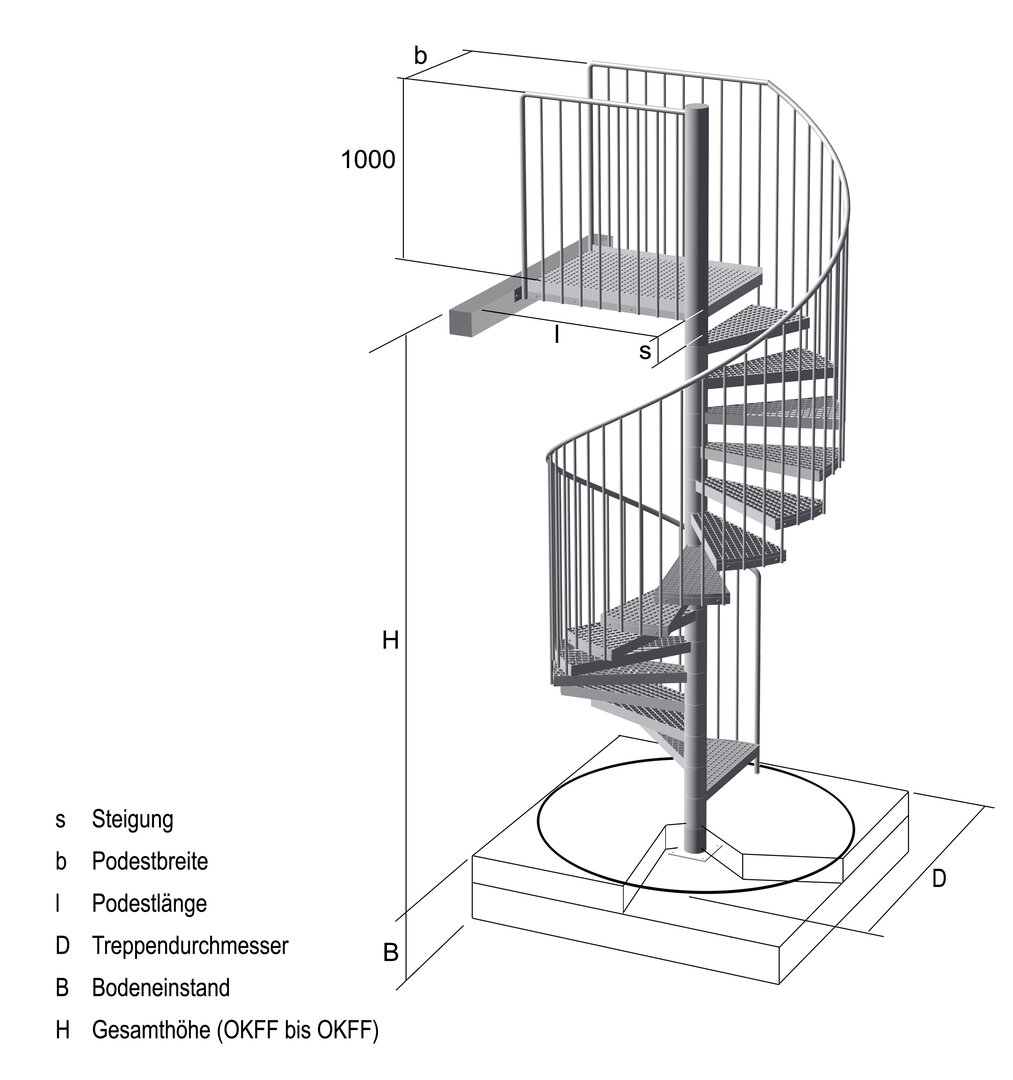

VARIO construction method:
With this flexible construction method, the landings and steps are first arranged around the stand pipe using pipe sleeves. They are then fixed by applying the specific railing consisting of a revolving balustrade made of horizontal round bars, or by vertical rods. The railing height varies according to regulations as follows: 1000 mm for overall staircase heights up to 12 m and 1100 mm for heights in excess of 12 m.

Technical features:

Galvanised according to DIN EN ISO 1461
Optional protective cage
Kick plate on steps and landings
Diameter max. 3000 mm
Load 3.0 or 5.0 kN/m2
Designed for an individual load of up to 2.0 kN (DIN EN 1991)

GI-RO ECO spiral staircase

Our ECO-type spiral staircase system is particularly well suited for constructing one-storey to two-storey staircases – both in the industrial and the private sector. With diameters of 1600, 1800 as well as 2000 mm, we adapt the stair type to suit your individual needs.

The ECO construction method:
The clever design of our ECO staircase system enables safe installation. The steps and landings are positioned directly against the stand pipe and bolted to it. The railing is then attached to the steps.

Technical features:

Modular system
Galvanised according to DIN EN ISO 1461
One-storey to two-storey (height max. 4000 mm)
Diameter 1600, 1800 or 2000 mm
Load 3.0 kN/m2
Designed for an individual load of up to 2.0 kN (DIN EN 1991)
Type-tested
(Test report II B6-543-206)

Railing versions for the GI-RO VARIO spiral staircase

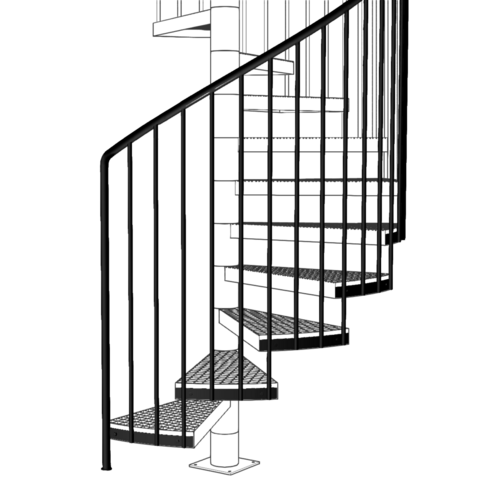

Type G100

Vertical bars and handrail made from round tubing
Clear distance between the railing posts maximum 120 mm

Type G110

Vertical bars and handrail made from round tubing
Clear distance between the railing posts maximum 120 mm
Additional children's handrail made from a round tube

Type G125

Vertical bars and handrail made from round tubing
Clear distance between the railing posts maximum 120 mm
Additional stainless steel handrail

Type G200

Handrail, lower bracing and vertical railing posts consisting of a round tube
Railing infill made from round steel

Type G300

Handrail and centre bracing, as well as vertical railing posts consisting of a round tube

Type G400

Handrail made from round tubing
Railing posts consisting of a flat steel
Revolving balustrade made of horizontal round bars

Step designs for GI-RO VARIO spiral staircases

Type P 30/30

Mesh pitch 33 x 33 mm

Type P 30/30 RH

Mesh pitch 33 x 33 mm
Slip-resistant

Type P 30/10 RH

Mesh pitch 33 x 11 mm
Slip-resistant

Type BL NO

Sheet metal profile with surface profiling
Open studs

Type BL NG

Sheet metal profile with surface profiling
Closed studs

Type TB

Cover made of chequer plate

Excerpt from DIN 18065:2011

Building type	Stair type	Min. usable staircase width	Min./Max. Gradient	Min./Max. Tread width in walking line
Buildings in general	Staircase required under building regulations	1000 mm	140/190 mm	260/370 mm
Buildings in general	Stairs not necessary under building regulations / additional	500 mm	140/210 mm	210/370 mm
Residential buildings up to two storeys and within residential levels	Staircase required under building regulations	800 mm	140/200 mm	230/370 mm
	Stairs not necessary under building regulations / additional	500 mm	140/210 mm	210/370 mm

Excerpt from the State Building Code
All buildings	Staircase necessary	1000 mm	According to DIN	According to DIN
Buildings with up to two flats	Stairs required under building regulations	800 mm	According to DIN	According to DIN

Excerpt from the accident prevention regulations
Place of assembly	Staircase necessary	1000 mm	150-170 mm	290-310 mm
Commercial buildings	Staircase required under building regulations	800 mm	160-190 mm	260-300 mm

We are happy to help you!

You know the intended use for your gratings, but need help deciding which product is the best solution for you? Our specialist staff will be happy to advise you - even in special cases. Please don't hesitate to contact us!
